Tarjeta Madre Gigabyte Ga-am1m-s2p Socket Am1 Ultra Durable

Descripción

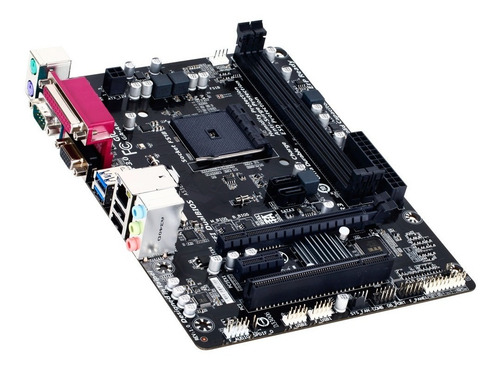

Tarjeta Madre Gigabyte GA-AM1M-S2P

En empaque OEM Caja blanca
si no está de acuerdo con el empaque por favor no oferte.

Socket FS1b con soporte para APUs serie AM1 Athlon/Sempron de AMD
Tecnología Ultra Durable™ 4 Plus de GIGABYTE
UEFI DualBIOS™ de GIGABYTE
On/Off Charge™ de GIGABYTE para dispositivos USB
2 puertos USB 3.0 con 3x USB power de GIGABYTE
Alta protección ESD en los puertos GbE LAN y USB
Diseño con solo Capacitores Sólidos

APU
FS1b Socket:
AMD Athlon series processors
AMD Sempron series processors
(Please refer "CPU Support List" for more information.)
Memoria
2 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Support for DDR3 1600/1333 MHz memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Gráficos Integrados
Integrated Graphics Processor:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
Maximum shared memory of 2 GB
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Puertos de Expansión
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCI Express slots conforms to PCI Express 2.0 standard.)
1 x PCI slot
Interfaz de Almacenamiento
Integrated in the APU:
2 x SATA 6Gb/s connectors
USB
Integrated in the APU:
2 x USB 3.0/2.0 ports on the back panel
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Conectores Internos de E/S
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
1 x APU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
Conectores del Panel Trasero
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x D-Sub port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Controlador de E/S
iTE I/O Controller Chip
Monitorización H/W
System voltage detection
APU/System temperature detection
APU/System fan speed detection
APU overheating warning
APU/System fan speed control
Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Únicas
Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery 2
Support for ON/OFF Charge
Software Incluido
Norton Internet Security (OEM version)
Sistema Operativo
Support for Windows 8.1/8/7 32-bit/64-bit
Support for Windows XP 32-bit
Only support SATA IDE mode.
Diseño
Micro ATX Form Factor; 22.6cm x 17.0cm

Manejamos todo tipo de Tarjetas madre
Consultas bienvenidas
Mercancía en Stock , envíos en el día por Mercadoenvíos Fedex DHL Estafeta
Podemos Facturar su compra , precio incluye IVA y envío gratis a todo MEXICO
Calidad y servicio Post Venta Garantizado

Garantía del vendedor: 3 meses
