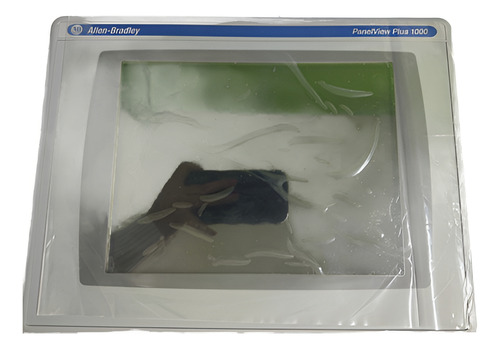

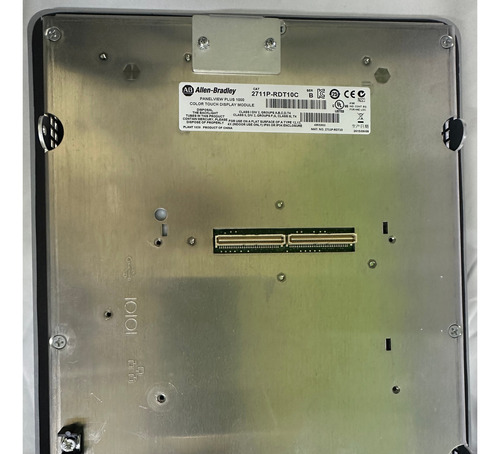

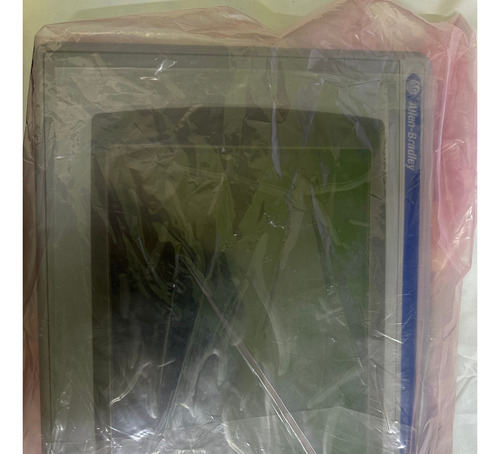

Allen Bradley 2711p-rdt10c Panelview Plus Display Module

Descripción

Technical Specifications
Mechanical
Width 329 mm
Height 248 mm
Depth 55 mm
Weight, approx 2.6 kg
Cutout dimensions 224 x 305 mm

Electrical
Number of pixels, vertical 480
Number of pixels, horizontal 640
Display size 10.4 inch
Luminance 300 cd/m2 (Nits)
Input voltage 85...264V AC
Backlight CCFL, 50000 hours life, minimum
Operator input Touch
Power consumption 70 W max (2.9 A at 24V DC), 39 W typical (1.6 A at 24V DC)
Line frequency 47 Hz
Operating force, touch screen 10 g
Remote power input voltage 85...264V AC
Remote power consumption 120VA maximum
External CompactFlash storage 512 MB maximum
PCI slot available power supply, max 11 W DC, 5 W AC
Touch screen Analog resistive
Actuation rating, touch screen 1 million presses
LED indicators COMM (Green), fault (Red)
Battery life 4 year minimum at 25 °C (77 °F)
Clock Battery-backed, +/-2 minutes per month
Application flash memory 20 MB for logic modules, series A to D
Display type Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)

Environmental
Operating temperature 0 °C
Nonoperating temperature -25 °C
Shock Operating: 15 G at 11 ms
Degree of protection (IP) IP65
Altitude, operating 2000 m
List of degrees of protection (IP) IP54, IP65
Heat dissipation 240 BTU/hr
Relative humidity 5...95% without condensation
Enclosure rating NEMA Type 12, 13, 4X (Indoor use only), IP54, IP65
Vibration 10...57 Hz, 0.012 peak-to-peak displacement, 57...500 Hz, 2 G peak acceleration

Construction
Display area 211 x 158 mm
Description 1000 touch color display
