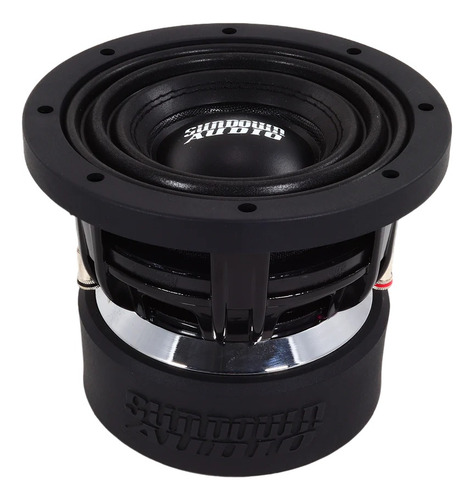

Subwoofer Sundown Audio U6.5 V1 D2 6.5 PuLG 400wrms Spl

Descripción

FEATURES
RMS: 400W
Black Aluminum 1.753” voice coil former for superior heat dissipation
High Temperature Round-Wire Copper voice coil
Double stitched surround
Heavy duty cast basket
Spring loaded terminals accept up to 8 gauge
Stitched-on heavy-duty tinsel leads
Solid pole with vent channels and aluminum shorting ring cap
Rear drilled gap-venting
Magnet ID shorting ring
Top-Plate Cooling Channels
Optimized for small ported enclosures
U-6.5SW

T/S SPECS U-6.5SW" D2
RE (Ohms) 4.0586 6.6274
FS (Hz) 41.9533 38.6925
VAS (L) 2.9053 3.7701
Qes 0.5238 0.5005
Qms 8.5834 7.2470
Qts 0.4937 0.4681
Le (mH) 4.0112 5.5892
BL (NA) 16.7428 20.0082
Mms (Grams) 137.2546 124.3518
Cms (uM/N) 104.8528 136.0613
Sens (dB @ 1w/1m) 77.8706 78.1460

ENCLOSURE SPECS

Ported Enclosure
Size: .25-.35 cuft net
Port Area: 4-5 sqin
Port Tuning: 35hz -40hz

Sealed Enclosure
Size: 0.125-0.2 cuft net
Displacement: .04 cu. ft.

Physical Dimensions

Depth: 5.71"

Outside Diameter: 7.17"
Cutout: 5.94"

Garantía del vendedor: 6 meses
