Máquina De Grabado Y Corte Láser Cnc Atomstack P7 M30 30w

Descripción

Features:

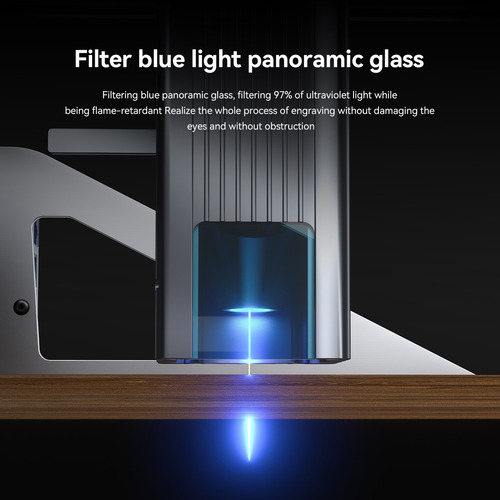

1. Eye protection flame retardant filter panoramic glass: The flame retardant filter panoramic glass can filter 97% of ultraviolet light, which is very good for your eyes. You and the people around you don't need to wear goggles, and you can watch the laser engraving clearly. Reduce the cost of your goggles and the inconvenience of wearing goggles, the glass is flame retardant and safer to use.
2. Sturdy and easy-to-install structure design: All-aluminum alloy anodized structure design makes the machine more firm and durable, while improving the accuracy of engraving, portable all-metal structure, 85% pre-assembled, and can be installed in 5 minutes.
3. Upgraded high-performance fixed-focus laser: It can be engraved without focal length adjustment, and the laser focus area is about 50% smaller than other lasers; the laser power of up to 5.5W can cut thick wood, acrylic, and rubber materials; at the same time, it can engrave stainless steel and ceramic materials (need to be painted black).
4. Extensive compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, supports for Win XP / Win 7 / Win 8 / XP / Win 10, also supports for Mac system (LightBurn), engraving file format supports for NC, BMP, JPG, PNG, DXF, etc.
5. Precise scale line axis: There are precision scale lines on the X axis and Y axis, which is convenient for you to measure the length quickly. The 200*200mm large-area engraving range can meet your various engraving needs.
6. Integral screw rod: The machine adopts integral screw rod instead of combined coupling. The stepping motor and screw rod are integrated, which makes the movement of the laser more accurate and the coupling more durable.
7. New laser with knob: It is more convenient and quick to adjust the height of the laser.
8. Color gift box packaging: More beautiful and more convenient for gift giving.

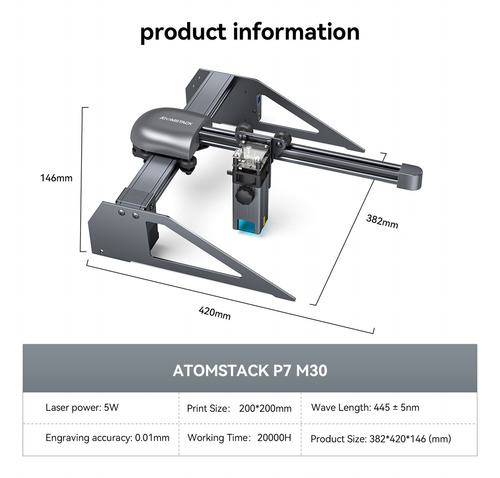

Specifications:
Engraving size: 200*200mm/7.87*7.87"
Engraving/cutting materials:
Carving material: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;
Cutting material: cardboard, non-woven fabric, thin wood chips, acrylic, some thin plastic sheets, sponge, MDF, leather;
Machine power: 30W
Laser output optical power: 5W
Laser wavelength: 455±5nm
Engraving accuracy: 0.01mm
Focusing method: Fixed-focus laser, no focusing
Laser protective cover: There is a protective cover on the laser to protect the user's eyes, and there is no need to wear additional protective glasses. At the same time prevent pets from scratching the laser spot.
Operating software: LaserGRBL, LightBurn, support for Win XP/Win 7/Win 8/XP/Win 10 system
Supported file formats: NC, BMP, JPG, PNG, DXF
Data transfer method: USB connection
Power supply: International standard power input: 100-240V AC, 50/60Hz output: 12V 5A
Certification: CE, FCC, RoHS, FDA, PSE

Precautions:
1. When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.
2. Do not touch the laser with your hands, otherwise you may burn your hands.
3. Please avoid strong impact on the machine.
4. It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult supervision.
5. Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.

Notes:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.

Packing list:
Assembly spacer*4
Laser*1
Laser rail*1
Foot pad foam*4
USB cable*1
Open-end wrench*1
Y-axis belt assembly*1
Marker pen*1
Cable tie*5
Screw*4
Allen wrench*2
Wood chips*3
Fixed focus film*1
Acrylic sheet*3
Cutting backing plate* 1
Lower support foot*1
Upper support foot*1
Control box*1
X-axis assembly*1
Y-axis assembly*1
Power adapter*1
Power cord*1
