Hu361awk Interruptor, 30a, 3 Wire, 3 Pole, 30hp, 600vac/dc,
en 24 meses de
IVA incluido
Vendido por OMEGAAUTOMATION
+1000 Productos
+100
Ventas concretadas
Brinda buena atención
Entrega sus productos a tiempo
Características del producto
Características principales
Marca | Schneider |
|---|---|
Línea | Interruptor de seguridad de un polo |
Modelo | HU361AWK |
Otros
Número de polos | 1 |
|---|---|
Corriente nominal In | 30 A |
Tensión nominal de aislamiento máxima Ue | 600V |
Curva de disparo | B |
Tipo de producto | Automático |
Tipo de unidad de control | Termomagnético |
Descripción

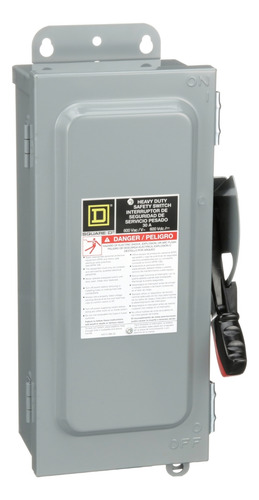

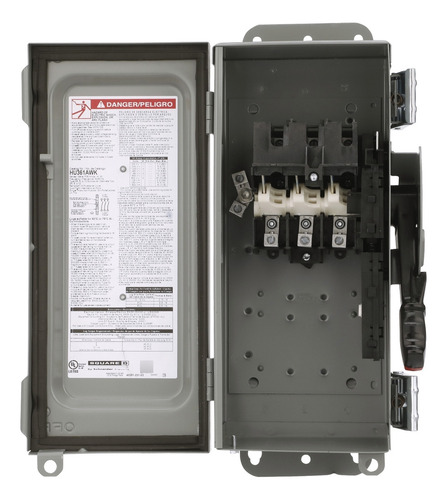

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 30A and is UL listed with a NEMA 3R/12 rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of galvannealed steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.
Todos nuestros productos son nuevos, incluyen garantía y son facturables.
