Ebtools Card Reader Writer, Rfid Barcode 2d Qr Access Contro

Descripción

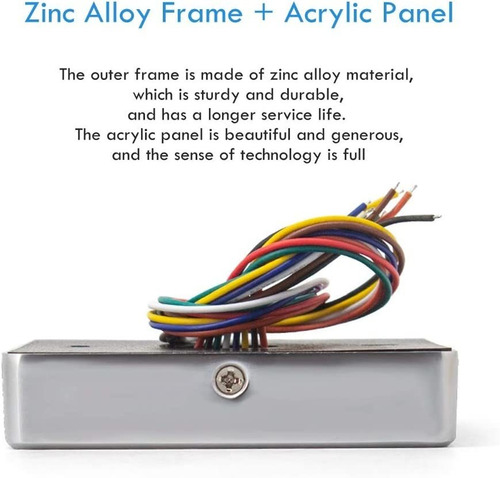

Zinc Alloy Frame Acrylic PanelThe outer frame is made of zinc alloy material, which is sturdy and durable, and has a longer service life. The acrylic panel is beautiful and generous, and the sense of technology is full.; Non contact Card ReadingResponse speed 0.2 seconds, the card reading distance can be sensitive in the range of 0 to 80mm, support ID card reading or IC card, can be connected to any controller that supports for Wiegand input.; QR Code RecognitionAutomatic induction, led fill light, can recognize even in dim environment. Adopt standard 86 box industry standard, rapid response and high recognition accuracy.; LED Prompt BuzzerThe two color LED light is full of sense of science and technology, and with the buzzer, it can more accurately feedback the results of card reading and scanning.; For Different OccasionsIt is widely used in business office building visitor entry management, scenic tourist staff management, community visitor entry and exit management, administrative hall access control management, supporting gates, access control, visitor machines, smart homes, etc. Specification:
Item Type: Card Reader
Optional Style: ID Card, IC Card
Material: Zinc Alloy Acrylic
Card Reader Type: for EM card
Barcode Type: QR, barcode

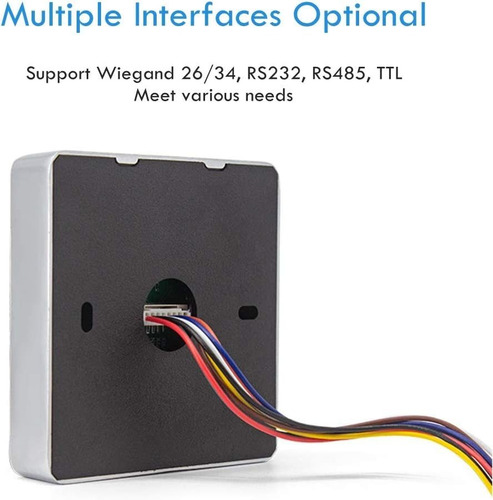

Communication Method: For Wiegand 26/34/RS232/RS485/TTL
Working Frequency: 125 (Khz)
Decoding Mode: Image decoding
Reading Direction (barcode): 45 inclined plane with the lens as the center point
Scan Coding Features: Automatic induction, buzzer prompt
Working Voltage: 8 to 12V
Working Current: 800mA
Card Reading Distance (card): Approx. 3 6cm / 1.2 2.4in
Reading Distance (QR): Approx. 0 20cm / 0 7.9in
Reading Speed: 200ms
Operating System: For WindowsXP/7/8/10)/Linux
Light: Standby state (blue light is on normally), card reading/scanning state (green light is on for about 0.5s)
Built in Horn: Buzzer
Line Sequence Definition:
for Wiegand 26/34RS485RS232
Red wire: 12VRed wire: 12VRed wire: 12V
Black wire: GNDBlack wire: GNDBlack wire: GND
Green Wire: D0Brown wire: 485ABlue wire: RX
White Wire: D1Orange wire: 485BYellow wire: TX
Note:
1. The access control card reader cannot store user data and information, and cannot add card users, password users, and fingerprint users. It is only an expanded card or password unlocking tool, which can only be used with access control integrated machines, card time attendance machines and other equipment.
2. When installing/removing, please turn off the power first and do not operate with power.
Package List:
1 x Card Reader Todos nuestros productos estan en inglés SKU 28092211200
