Kit Gigabyte D425tud Intel Atom 1.8ghz P/ddr3 Box Oem

Descripción

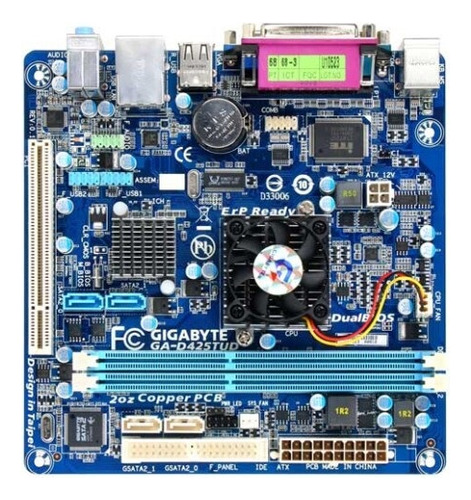

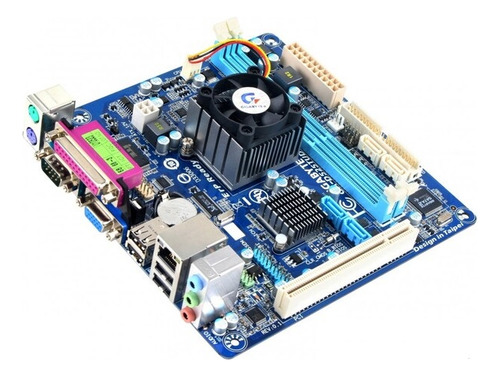

KIT ITX Gigabyte
Modelo D425TUD
Atom D425 1.8Ghz

Incluye
Tarjeta Madre
Procesador Intel Atom D425
Ventilador/Disipador
Cable SATA
Lamina trasera (No incluida)
Apto Windows 7 / 10
Empaque OEM Caja Blanca , SI NO ESTA DE ACUERDO CON EL EMPAQUE POR FAVOR NO OFERTE.

Ideal Robótica / Equipos Industriales

Maneja
1 puerto paralelo Centronics
1 Puerto I/O RS232

Tecnología Ultra Durable 3 con tecnología de cobre para menores temperaturas de trabajo
3x USB power que incrementa la compatibilidad y la energía entregada a los dispositivos USB
Soporte para el CPU Intel Atom D425 de 45nm
Gráficos Intel Integrados con soporte para DirectX 9
Audio en Alta Definición Integrado
Conexión de Red Gigabit de alta velocidad
Doble Hardware de Protección Patentado DualBIOS
4 puertos SATA y soporte para la interfaz IDE para máxima conectividad
Soporte para SATA 3Gb/s con function RAID
Compatible con Window 7 para mejorar la experiencia

Especificaciones
Procesador
Built in with an Intel® Single-core Atom™ D425 processor (1.8 GHz)
* Do not disassemble the onboard CPU/chipset and theheatsinks/fan by yourself to avoid damage to these components.
512K L2 cache
Chipset
Intel® NM10
Memoria
2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory
* Due to Windows 32-bit operating system limitation, when the 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Support for DDR3 800 MHz memory modules
(Please refer "Memory Support List" for more information.)
Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
1 x Realtek RTL8111F chip (10/100/1000 Mbit)
Puertos de Expansión
1 x PCI slot
Interfaz de Almacenamiento
Chipset:
2 x SATA 3Gb/s connectors (SATA2_0, SATA2_1) supporting up to 2 SATA 3Gb/s devices
GIGABYTE SATA2/JMicron JMB363 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
* When installing Windows XP onto the hard drive connected to the JMicron JMB363 controller, be sure to connect the optical drive to a SATA port controlled by the Intel chipset.
Support for SATA RAID 0, RAID 1, and JBOD
USB
Chipset:
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Conectores Internos de E/S
1 x 20-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x chassis intrusion header
1 x power LED header
Conectores del Panel Trasero
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
Controlador de E/S
iTE I/O Controller Chip
Monitorización H/W
System voltage detection
CPU temperature detection
CPU/System fan speed detection
CPU fan speed control
BIOS
2 x 4 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Características Únicas
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for SMART Recovery
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share
Support for Microsoft® Windows® 7/Vista/XP
Diseño
Mini-ITX Form Factor; 17.0cm x 17.0cm

Mercancia "in stock" Entrega inmediata
Podemos Facturar su compra
Producto convenientemente empaquetado
Consultas bienvenidas

Garantía del vendedor: 30 días
