Csl Cockpit+csl Dd (5nm) Ready2race Bundle Fanatec Simracing

Descripción

Unbelievably strong
Angled uprights help to distribute the load on the chassis more effectively than a rectangular profile construction. The CSL Cockpit can handle all Fanatec Direct Drive systems, even the 25 Nm Podium Wheel Base DD2, and the pedal plate is designed for the high forces applied on load cell brakes.


GT driving position
The classic GT driving position of the CSL Cockpit is ideal for most forms of motorsport, such as GT, Oval, Drift, and Rally. By inverting the Wheel Base brackets, a karting position is also possible.
Consistency is everything
Step into a rig that feels the same every time you drive, so you can focus on your lap times.

Easy to assemble, built to last
Easy to assemble, built to last
The frame is made of aluminium tubing and steel brackets, with easy-to-follow instructions to assemble with the included tools.

Accessories
Accessories
Choose your optional accessories : CSL Cockpit Seat, CSL Cockpit Shifter Holder, and CSL Cockpit Monitor Holder are all specially designed to fit the CSL Cockpit (all sold separately, more accessories coming soon).



MULTI-PURPOSE DESIGN.
The 300 mm diameter is suitable for many vehicle types, and the lightweight construction retains fine force feedback detail even at low torque settings.


TACTILE, DURABLE.
The internal structure of the polymer casing means that the wheel is strong and durable. The rubberised grip provides just the right amount of friction, and is comfortable to use for long sessions, even with sweaty hands.
CSL DD. Now with QR2.
Bring the race track to your home with exceptional Direct Drive performance in a compact design. Now including QR2, you'll experience even more precision and detail in the force feedback.

FANATEC® Direct-Drive technology.
FANATEC® Direct-Drive technology.
When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. Choose Direct Drive by Fanatec and experience your favourite racing simulations as the developers intended.

Plug and Play.
Plug and Play.
Our strong relationship with game developers means the CSL DD has broad compatibility and consistent behaviour across many popular titles. The Standard Tuning Menu has been simplified, allowing beginners to start quickly without having to worry about settings. The Advanced Tuning Menu remains for enthusiasts.

Pedal to the metal.
The CSL Pedals are solidly built from steel. Precise and durable sensors allow you to stay in control with smooth throttle and brake inputs.

Heavy steel construction.
Heavy steel construction.
The stability of the all-metal design means it is built to last. The stiffer spring on the brake pedal combined with the PU foam damper provides a realistic, progressive feeling.

Magnetic sensors.
Magnetic sensors.
Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensor and consistent performance.

Features

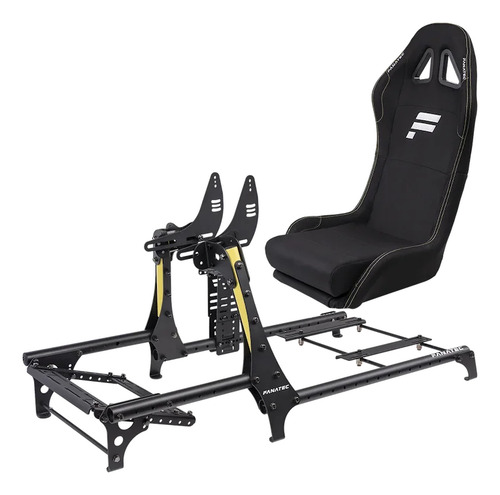

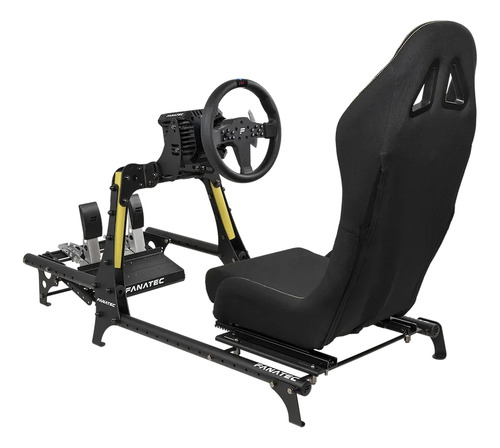

CSL Cockpit
Super strong and lightweight trapeze chassis
Aluminum tubing
Steel brackets
Black and yellow powder coating
Designed specifically for Fanatec Direct Drive Wheel Bases with optimal side mounting
Strong pedal plate for consistent control on load cell brakes
CSL Cockpit Seat designed to match the style of the CSL Cockpit
Supports most standard racing seats (including the SPARCO Pro 2000 QRT)
Pedals angle and distance adjustment
Innovative Wheel Base mounting bracket design
Three height options
Stepless adjustable angle (0 to 30°)
Stepless adjustable distance to seat (80 mm range)
Can be inverted to achieve an ideal karting position
Optional monitor holder (sold separately)
Optional shifter holder (sold separately)
Hollow tubing allows for tidy cable management
Included tube caps with cable holes.
Two types of protective foot pads (felt and rubber) to suit carpet or hard flooring
Compact packaging for ease of shipping.

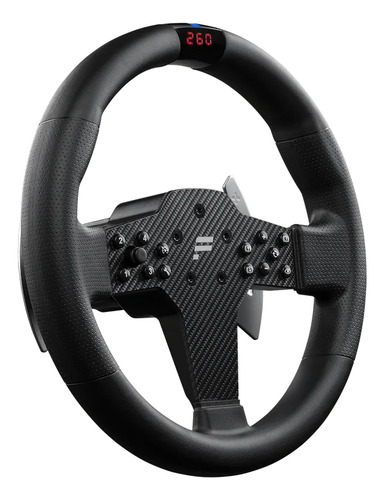

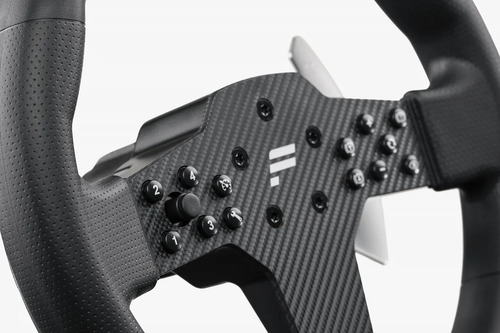

CSL Steering Wheel P1 V2:
Realistic size, suitable for many driving styles (300 mm)
Rubberised wheel rim with improved ergonomics
Integrated RevStripe™, which is a combined centre stripe and an engine RPM indicator, using a multi-colour LED
Three-digit LED display smoothly integrated into the wheel rim below the RevStripe™ allows telemetry data such as speed or gears to be displayed in compatible games or third-party software
Metal shifter paddles, snap-dome-activated “click” feeling
4-way direction pad with push button
Tuning functions with LED display to adjust settings independent from the game and during gameplay (see description of compatible wheel base/racing wheel for details)
QR2 Lite Wheel-Side preinstalled

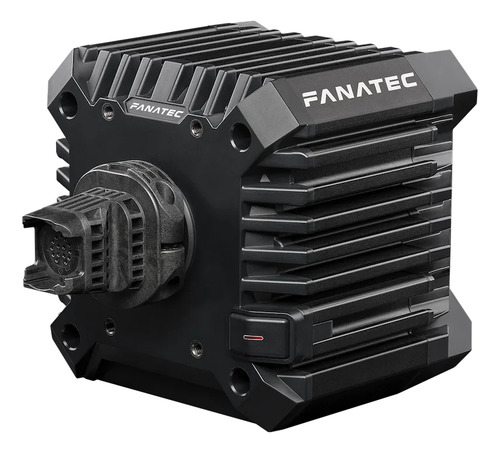

CSL DD QR2:
Direct-Drive system delivers instant, detailed force feedback
Linear, consistent performance (5 Nm peak torque)
Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)
Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
High-resolution (contactless) Hall-position-sensor, same as Podium Series
Steering axis made from carbon fibre-enhanced composite
Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
Rotation: 2520 degrees (electronically limited, adjustable)
Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
QR2 quick release system
Motorsport-derived quick release
Tapered shape naturally ensures a tight fit
Carbon fibre-reinforced polyamide construction
Exchangeable
T-nut rail system on sides and bottom for easily adjustable hard-mounting
Optional table clamp (sold separately), supports 5 to 60 mm table thickness

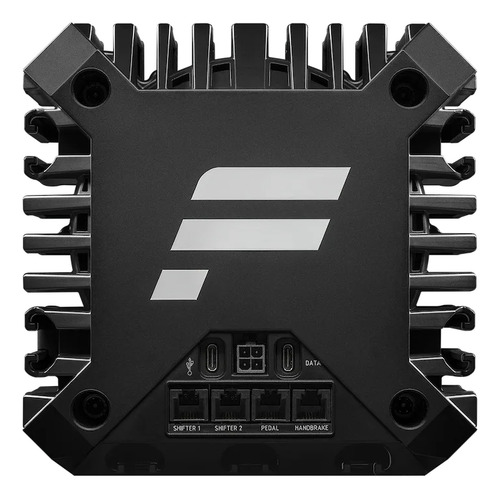

Ports:
Power supply
USB-C to PC / console
Fanatec DataPort-C
Shifter 1
Shifter 2 (Sequential only)
Pedal
Handbrake
Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

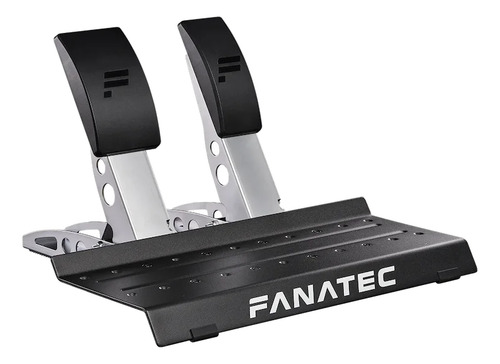

CSL Pedals:
Two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)
All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)
Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)
CSL Pedals Clutch Kit provides a third pedal for the lowest price
CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
Pedal position can be adjusted sideways along heel rest
Height-adjustable pedal faces
Modular design means inverted mounting to a rig is possible
Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
Pearl chrome plating on pedal bases and arms
Black powder coating on heel rest
Compatibility
Peripherals
The CSL DD QR2 Wheel Base is compatible with:
All Fanatec Steering Wheels (with QR2 Lite Wheel-Side, QR2 Wheel-Side, or QR2 Pro Wheel-Side)
All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
Fanatec ClubSport Shifters (including ClubSport Static Shifter Paddles)
Fanatec ClubSport Handbrakes
Fanatec Cockpits
ClubSport DD Table Clamp
CSL DD Table Clamp
ClubSport Table Clamp V2
Boost Kit 180
Podium Mounting Brackets (the CSL DD includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Platforms
PC: The CSL DD QR2 Wheel Base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
Xbox®: The CSL DD QR2 Wheel Base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed Steering Wheel.
PlayStation®: The CSL DD QR2 Wheel Base is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.
Tech Specs
Platform
PC

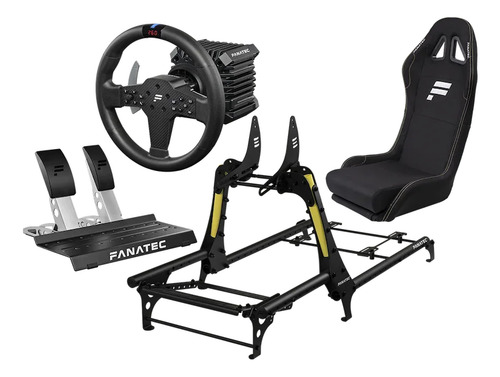

What's Included
CSL Cockpit
CSL Cockpit Seat
CSL Steering Wheel P1 V2
QR2 Lite Wheel-Side (preinstalled)
CSL DD Wheel Base
QR2 Lite Base-Side (preinstalled)
CSL Pedals
