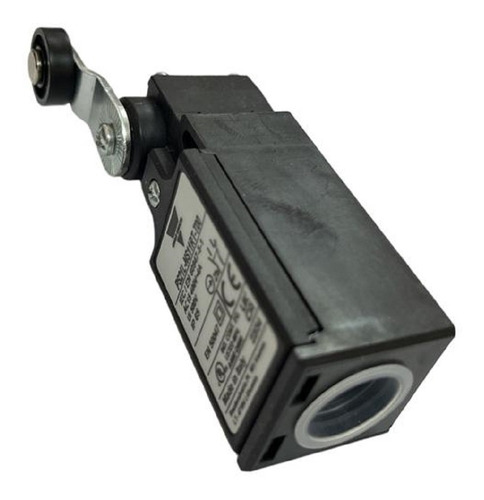

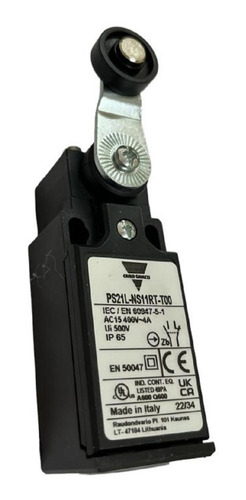

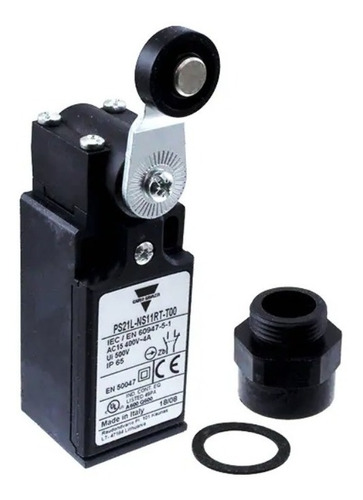

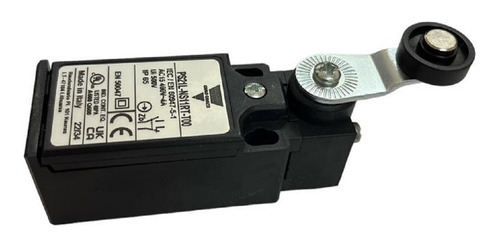

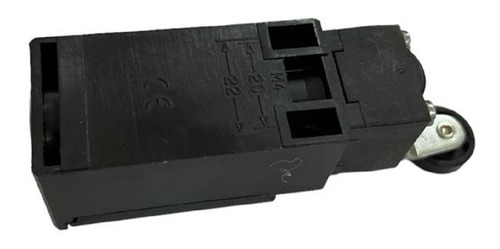

Limit Switch, Interrputor De Límite Gavazzi Ps21l-ns11rt-t00

Descripción

Interruptor de límite carcasa de plástico y cabezal RT con rueda y palanca movible izquierda y derecha.
Corriente de carga 10 Amperes
Conector glandula 1/2 NPT
S11: 1NO+1NC snap(+)
Standards IEC 60947-1, IEC 60947-5-1, EN 60947-1, EN 60947-5-1,
UL508 and CSA C22-2 n°14
Certifications – Approvals UL – CSA
Air temperature near the device
- during operation °C -25 … +70
- for storage °C -30 … +80
Climatic withstand According to IEC 68-2-3 and salty mist according to IEC 68-2-11
Mounting positions All positions are authorized
Shock withstand (according to IEC 68-2-27 and 60068-2-27) g 50g*
(1/2sinusoidal shock for 11 ms) no change in contact position
Resistance to vibrations (acc.to IEC 68-2-6 and EN 60068-2-6) g 25g (10…500Hz) no change in position of contacts greater
than 100µs
Protection against electrical shocks (acc.to IEC 536) Class II
Degree of protection (according to IEC 529 and EN 60529) IP65
Consistency (measured over 1 milion operations) 0.1 mm (upon closing point)
