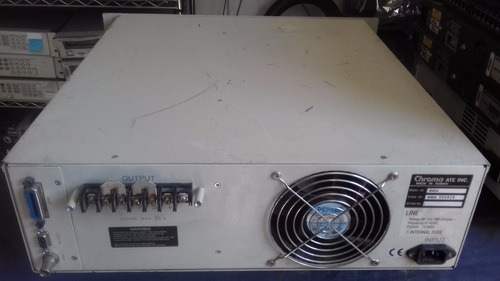

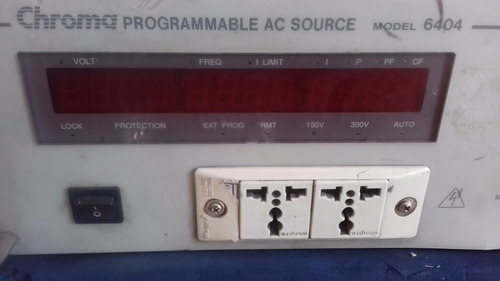

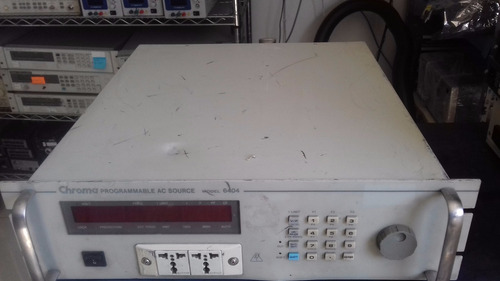

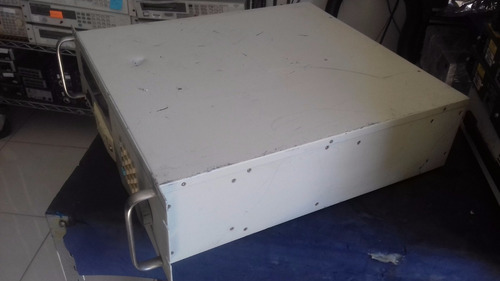

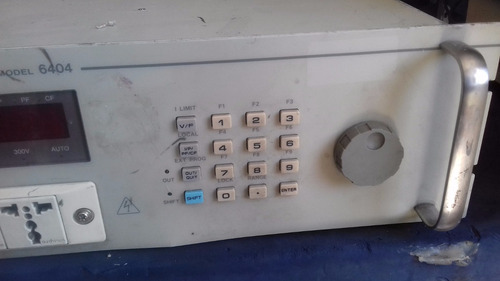

Chroma 6404 Power Source It17 (Usado)

Descripción

The Chroma 6400 Series Programmable AC Power Source uses state of the art PWM technology to deliver pure, instrument grade AC power at very low cost. The 6404 AC power source offers maximum rated power for the output voltage from 0 to 300 VAC, at the frequency from 45 kHz to 1 kHz. It is not only suitable for commercial applications (47 Hz - 63 Hz), but also for avionics, marine, and military applications at 400 Hz.
Output / Phase 1
Output Ratings
Power / Phase 375 VA
Voltage Range / Phase: 150V/300V/Auto
Accuracy: 0.2% of F.S. for freq. =200 Hz, 0.4%F.S. for freq. >200 Hz
Resolution: 0.1V
Distortion: typ.0.3% for freq. =200 Hz, 0.8% for freq. >200 Hz
Line Regulation: 0.1%
Load Regulation: 0.1%
Temp. Coefficient: 0.02% per °C
Max. current-rms 2.5 Amps/1.25 Amps
Peak Current/Phase - crest factor Typ. 2.8 for freq. =100 Hz, typ. 2.2 for freq. >100 Hz
Frequency Range: 45 Hz - 500 Hz
Accuracy: 0.1%
Resolution: 0.1 Hz
Input Ratings
Voltage Range 90 - 132 V/180 - 250 V
Frequency Range 47 Hz - 63 Hz
Current 7.5A Max.
Power Factor 0.8 Typ.
Measurement
Voltage / Phase Range: 0 - 150 V/0 - 300 V
Accuracy (rms): 0.1% F.S. + 0.1%
Resolution: 0.1 V
Current / Phase Range (peak): 0 - 2 Amps/2 - 10 Amps
Accuracy (rms): 0.2% F.S. + 0.5%
Resolution: 0.01 Amps
Power / Phase Range: 0 - 375 Watts
Accuracy: 0.5% F.S.
Resolution: 0.1 Watts
Frequency Range: 45 Hz - 500 Hz
Accuracy: 0.02%
Resolution: 0.1 Hz
