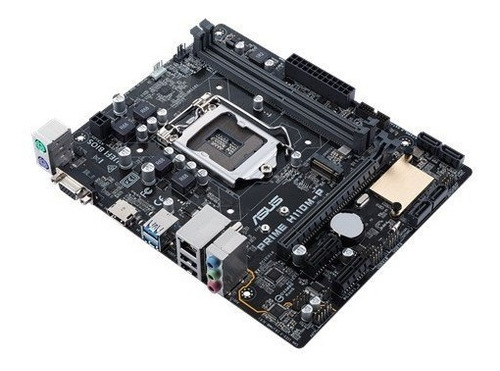

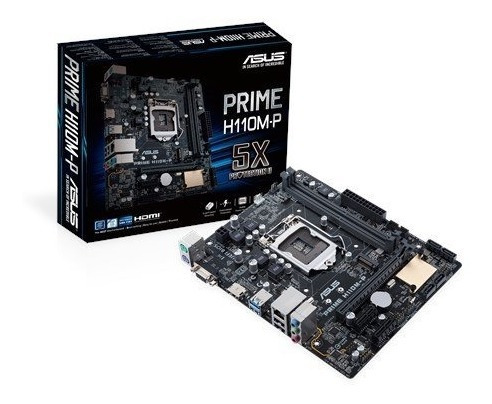

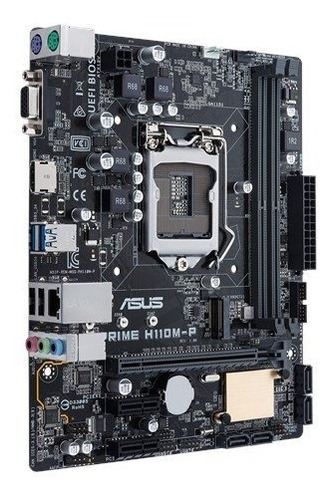

Mother Board Asus Prime H110m-p Lga 1151 Ddr4

Descripción

PRIME H110M-P


CPU
Build in Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Build in Intel® H110
Memoria
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
Gráfica
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports up to 2 displays simultaneously
Puertos de Expansión
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 2.0 x1
Almacenamiento
Intel® H110 chipset :
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
4 x SATA 6Gb/s port(s), gray,
LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
Puertos USB
Intel® H110 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® H110 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
Capacidades Especiales
ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - Phase digital power design
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS ESD Guards - Electrostatic discharge protection
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

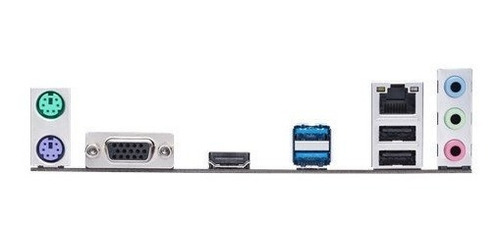

Puertos posteriores I/O
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 2.0
1 x 8-channel Audio I/O
2 x USB 3.1 Gen 1 (blue)
Internal I/O
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x System panel connector
1 x COM port header
1 x Speaker connector
Accesorios
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 screws
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control, ErP Ready

Manejo
WfM 2.0, DMI 2.0, WOL by PME, PXE
Sistema operativo
Windows® 10 64-bit
Windows® 8.1 64-bit
Windows® 7 32-bit
Windows® 7 64-bit
