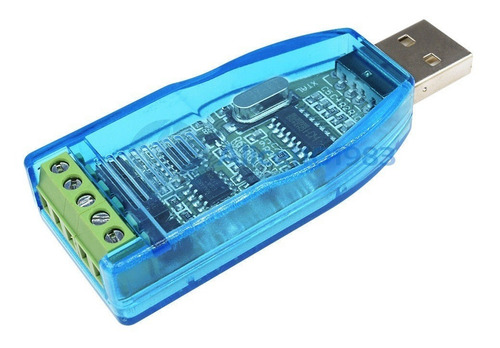

Modulo Industrial Convertidor Usb A Rs485 Rs422 Ch340

Descripción

NOTA: El producto se encuentra en Tlaquepaque Jal. y se hacen envios a toda la republica Mexicana. Checa en la opcion de costos de envios para mayor inf............

Nota: Se hacen entregas en el area cercana a centro Sur en GDL previo acuerdo.

Modulo convertodor de protocolo USB 2.0 a RS485 - RS422 de hasta 1200mt de longitud del cable a una velocidad de 19.2Kbps. Velocidad maxima con cable 1mt 115200 Kbps.
Basado en el controlador CH340
Driver Support: Windows 2000/2003/XP/Vista/7/W10 (32bit and 64bit)

Specifications
Compatibility: USB v2.0 standard
Interface: Network:USB
Serial:RS-485/RS-422
Port: One Independent RS-485 or RS-422 ports
Connector: Network: USB-type A connector
Serial: Screw terminal
Transmission speed: 600bps to 115.2Kbps
Parity bit: odd, even, none
Data bit: 5, 6, 7, 8
Stop bit: 1, 1.5, 2
Driver Support: Windows 2000/2003/XP/Vista/7/W10 (32bit and 64bit)
Power Consumption: 1.5W @ 5V
Max. Distance: 4000ft (1200m) @ 19.2Kbps
Case: Blue transparent ABS
Operating Temperature: -20¿~+65¿
Operating Humidity: 20% to 95% (non-condensing)

Overview:
USB To RS485/422 converter allows PC users to connect their RS-485/422 devices
to systems that use USB interface. By attaching the converter to a PC, it will no longer be
necessary to open the chassis or turn off the PC to install the hub. With the converter,
the user instantly gets one extra high-speed RS-485 or RS-422 ports. In addition, since
the power is derived from the USB port, there are not any cumbersome power adapters.
This makes the converter especially suitable for PLCs, printers, POS system and industrial
control devices.
