Fpga: Tarjeta De Desarrollo Xilinx Spartan 6 Xc6slx16 + 32mb

Descripción

NOTA: El producto se encuentra en Tlaquepaque Jal. y se hacen envios a toda la republica Mexicana. Checa en la opcion de costos de envios para mayor inf............

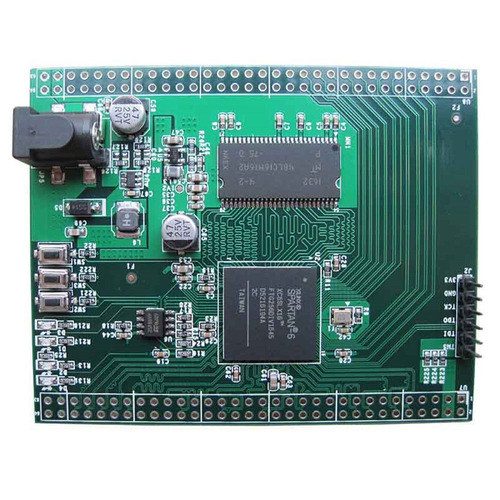

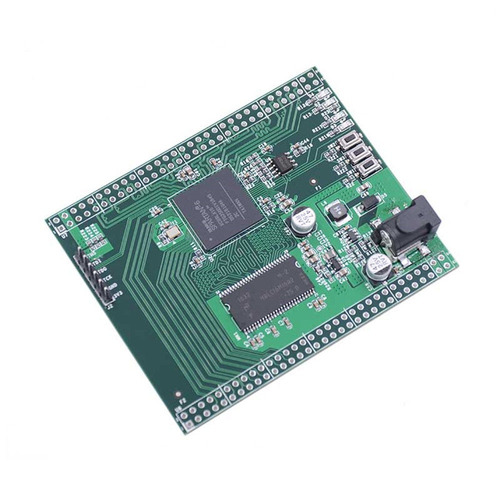

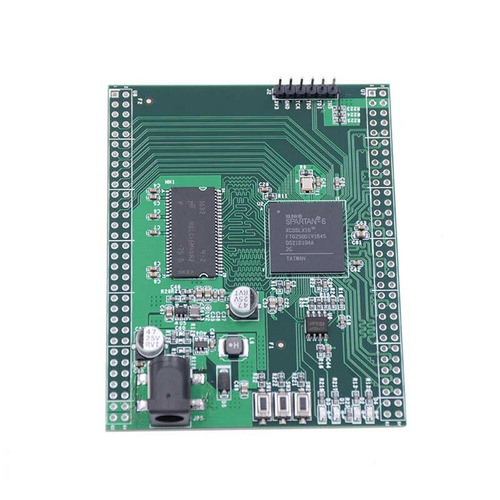

Tarjeta de desarrollo FPGA Spartan 6 basado en el Xilinx XC6SLX16 y 32Mb de memoria SDRAM incluida tal como se muestra en las imagenes. No te inclute programador. Este ese vende por separado.

Details:
Master FPGA:XC6SLX16-2FTG256C;
Master FPGA external clock source frequency: 50MHz;
The XC6SLX16-FTG256 chip comes with rich Block RAM resources;
The number of logic units in XC6SLX16-FTG256 chip is 14579;
M25P80, SPI, Flash chips, 1MB bytes of storage capacity;
32MB micron SDRAM model MT48LC16M16A2;
Provides 3.3V power for core board chips, using MPS's MP2359 wide range input DC/DC;
Brings out the two row 64p and 2.54mm spacing blocks, which can be used for external 24Bit TFT LCD screen, CY7C68013 USB module, high-speed ADC Acquisition module or CMOS camera module, etc.;
Draws the 3 button of the chip for testing;
Leads to the chip's 4 way LED lamp for testing;
Leads the JTAG chip debug port, the single row 6p, 2.54mm row spacing;
Size:6.7cm x 8.4cm
For Electronic engineers, hardware DIY enthusiasts, all kinds of enthusiasts, such as music, digital audio, MIDI
