Intel Pentium Iii 1 Ghz Socket 370 Bus De 100 Mhz (Usado)

Descripción

Procesador Intel Pentium !!! SL5QV

Bus de 100 MHz

a 1 GHz, socket 370

Funciona perfectamente, garantizado por un mes

No incluye disipador


General information
Type CPU / Microprocessor
Market segment Desktop
Family Intel Pentium III
CPU part numbers

RB80526PY001256 is an OEM/tray microprocessor
BX80526F1000256 is a boxed microprocessor

Frequency ? 1 GHz / 1000 MHz
Bus speed ? 100 MHz
Clock multiplier ? 10
Package 370-pin Flip-Chip Pin Grid Array (FC-PGA)
1.95" x 1.95" (4.95 cm x 4.95 cm)
Socket Socket 370 / PGA370
Introduction date Mar 8, 2000
Price at introduction $990
S-spec numbers
Part number ES/QS processors Production processors
QGG4 SL5QV
BX80526F1000256 +
RB80526PY001256 + +
Architecture / Microarchitecture
Instruction set x86
Microarchitecture P6
Processor core ? Coppermine
Core stepping ?
cD0
CPUIDs
68A
Manufacturing process 0.18 micron
28 million transistors
Die 94.7mm2 (CPUID 068Ah)
Data width 32 bit
Data bus width 64 bit
The number of CPU cores 1
The number of threads 1
Floating Point Unit Integrated
Level 1 cache size ?
16 KB instruction cache
16 KB data cache
Level 2 cache size ?
Full-speed integrated 256 KB cache
Multiprocessing Up to 2 processors
Extensions & Technologies

MMX instructions
SSE / Streaming SIMD Extensions

Low power features

Low power states
System Management Mode

Electrical / Thermal parameters
Min/Recommended/Max V core 1.67V / 1.75V / 1.79V
Minimum/Maximum operating temperature ? 0°C - 75°C
Maximum power dissipation ? 35.35 Watt
Thermal Design Power ? 29 Watt (CPUID 068Ah)
Notes on Intel Pentium III 1 GHz

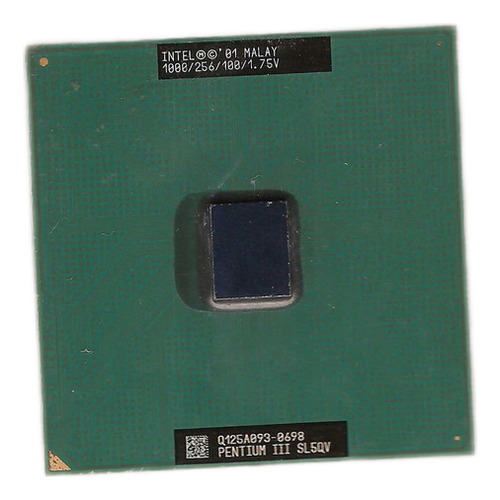

The processor is usually marked as 1000/256/100/1.75V
