Modulo 6 En 1 Usb Cp2102 Ttl - Rs232 - Rs485 Convertid Mutuo

Descripción

NOTA: El producto se encuentra en Tlaquepaque Jal. y se hacen envios a toda la republica Mexicana. Checa en la opcion de costos de envios para mayor inf............

Modulo convertidor mutuo 6 en 1 USB con CP2102 TTL - RS232 - RS485

Modulo convertodor de protocolo USB 2.0 a RS485, RS232 y Serial TTL basado en el CP2102. Soporta W10, Win8, Win7, VISTA, WinXp, Win2K, 32-bit, 64-bit system and WinCE, Linux, Mac system.

Convertidor multifuncional 6 en 1:
USB a TTL
USB a 232
USB a 485
TTL a 232
TTL a 485
232 a 485

Description:
Six in ONE Multifunctional Convert interface module:
USB to TTL
USB to 232
USB to 485
TTL to 232
TTL to 485
232 to 485

Features:
CP2102 core chip : CP2102 USB to serial chip is the best quality , most stable performance far exceeds the cost of the same chip , such as PL2303, FT232, CH341 and so on. High-speed, reliable, stable is capable of leading CP2102 USB to serial module sales in the important reasons.

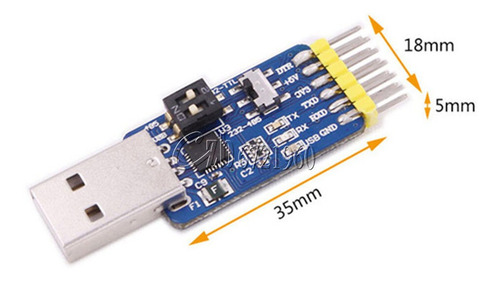

Ultra-small size : the circuit board only 3.1cm X 1.8cm. Ultra- small size , lack of a U disk size , only with a USB port width , even on those two USB ports from a very tight laptop can easily be placed side by side two .
3.3V and +5 V Compatibility: This product perfectly supports 3.3V. Now a lot of high-end microcontroller, such as ARM, STM32, DSP , adopted 3.3V. Additional modules are only compatible 5V level , they do not have 3.3V voltage output function.
Power Output: This module can be powered through to the microcontroller system to facilitate debugging. 5V-500mA or 3.3V-100mA.
Overcurrent protection : Onboard resettable fuse , even if the positive and negative short-circuit will not damage the circuit board or computer. If there is a short circuit or current exceeds 500mA , the fuse will automatically disconnect , to be short-circuited fuse circuit to restore non- normal . Effectively protect the security of your computer.

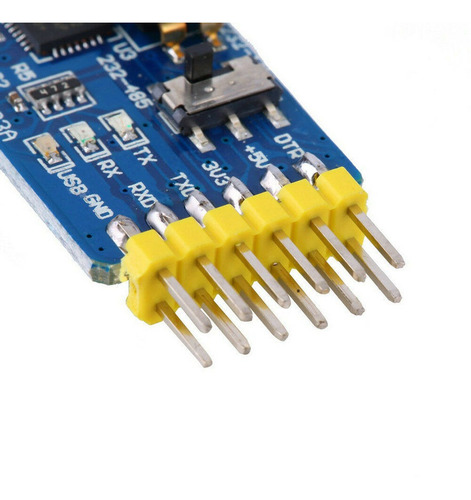

Transceiver indicator : When the serial line to send or receive data lines , the board will receive indicator lights for easy debugging.
TTL level interface : can be directly connected microcontroller or other embedded devices, such as 51, STC, AVR, ARM, FPGA , etc., without conversion.
RS232 level interface : connect a computer or Rs232 level serial devices.
RS485 level interface : automatic send and receive control without transceiver control line , the default receiving state , to send status line when sending data .

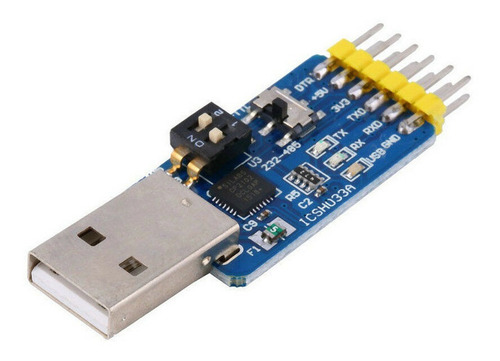

Freedom Huzhuan four levels : a unique circuit design , USB, TTL, RS232, RS485 freedom of conversion, switched by the switch to achieve physical , convenient and reliable , without interference.
High-speed communications : baud rate up to 2Mbps.
DTR, RTS signals: serial module leads the DTR, RTS signal is versatile, supporting MSP430 microcontroller BSL downloads.
SMT machines , industrial-grade chips : This module uses the whole machine placement process technology, quality and cheap manual patch welding have a qualitative difference , stable and reliable performance guarantee.

Package included:

1 X CP2102 USB to TTL RS232 USB TTL to RS485 Mutual Convert 6 in 1 Convert Module(No cables included)

Garantía del vendedor: 20 días
