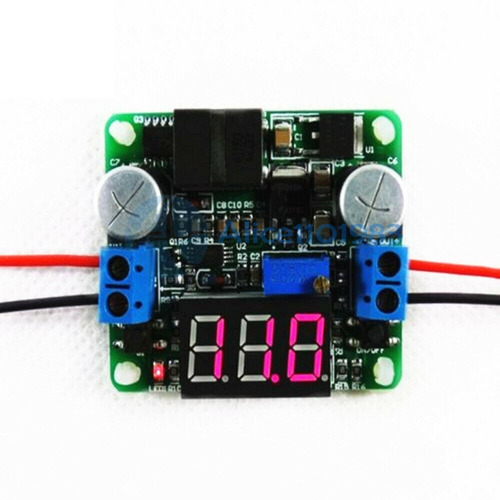

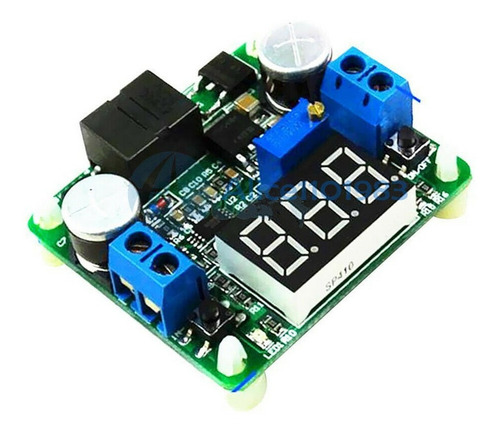

Convertidor Dc-dc Boost Buck Elevador Reductor 0.5 A 25 V

Descripción

Convertidor DC-DC elevador y reductor todo en uno. UNICO en su tipo. Buck y boost!!

Metes 5V y alcanzas hasta 25V.

Metes 25V a 5V y reduces cualquier rango hasta 0.5V

Integrated voltage meter step-up and down power supply module LM2577 LM2596 IN (5-25V)

Product Description:
Integrated voltage meter and MOS tube reverse protection circuit, 25W high-power wide voltage step-up and down the module, the performance far more than LM2596, LM2577. Output voltage can be higher or lower than the input voltage to use more flexible.

Parameter:

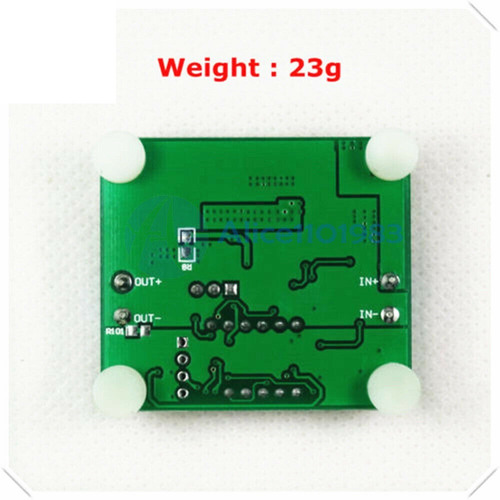

Weight: 23g

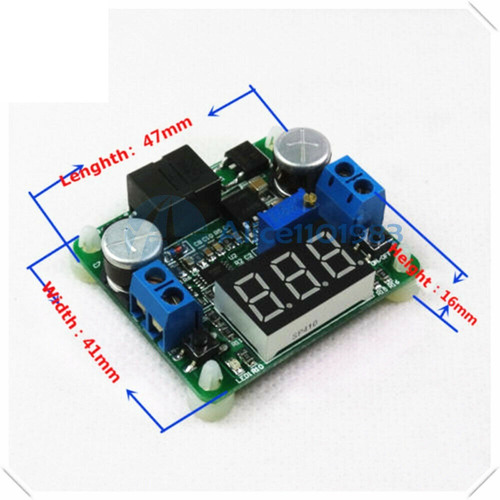

Dimensions: 47 * 41 * 16mm (L * W * H)
Display Color: Red
Input voltage range: 5.0-25V
Output voltage range: 0.5V-25V
Continuous output current: 2A (max)
Continuous input current: 2A (max)
Input / output power: 25W (max)
Input / Output Current: Input / Output Current (Uin * Iin * Efficiency = Uout * Iout) under rated conditions based on power conservation

Features:
1: Input and output voltage can be displayed alternately.
2: boot state can be freely defined.
3: with key switch function, easy to control the output.
4: high-power MOS tube reverse protection circuit, improve work efficiency and reliability.
Instructions and precautions:
IN +: Input positive
IN-: input negative
OUT +: Output positive
OUT-: Output negative
ON / 0FF: Output control key
S1: mode selection key / memory key

Commonly used voltage data test:

Step - up efficiency
5.0V to 12V / 1A Efficiency 86.3% 5V to 3.3V / 3A Efficiency 74.2%
7.4V to 12V / 1A Efficiency 88.7% 12V to 5V / 3A Efficiency 83.8%
12V to 18V / 1A Efficiency 88.3% 24V to 12V / 2A Efficiency 86.4%
18V to 24V / 1A Efficiency 87.3% 24V to 18V / 2A Efficiency 87.6%

Package Included:
1PC x Buck and Boost Voltage converter voltmeter display 5-25V
