Tarjeta Madre Gigabyte Ga H110m-ds2-ddr3 6ta Y 7ma Lga 1151

Descripción

ATENCION LEA ATENTAMENTE

Antes de ofertar consulte compatibilidad con su procesador

Nos reservamos el derecho de cancelar toda operación realizada sin consulta previa.

TODOS NUESTROS ARTICULOS SON FILMADOS FOTOGRAFIADOS Y PROVISTOS DE ETIQUETA DE GARANTIA PARA EVITAR POSIBLES FRAUDES.

ULTIMA VERSION DE BIOS ULTIMA VERSION DE BIOS ULTIMA VERSION DE BIOS

RECIBA ASESORAMIENTO DE LOS EXPERTOS , TARJETA 100% COMPATIBLE CON WINDOWS 10 y PROCESADORES Intel Celeron core i3 ,i5 i7 SERIE K de 6ta y 7ma Generación

NUESTRAS TARJETAS CUENTAN CON LA ÚLTIMA VERSIÓN DE BIOS

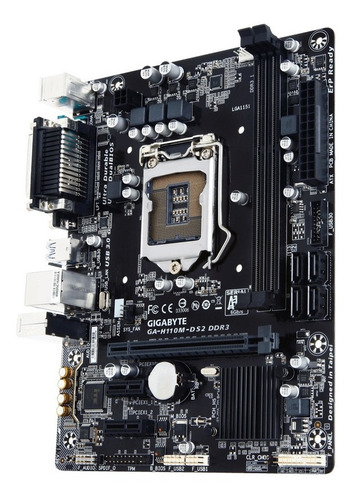

Tarjeta Madre Gigabyte GA H110M-DS2-DDR3
LGA 1151

Soporte para procesadores de 7ma y 6ta Generación Intel® Core™
Dual Channel DDR3, 2 DIMMs
8-channel HD Audio with High Quality Audio Capacitors
Audio Noise Guard with LED Trace Path Lighting
Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
APP Center Including EasyTune™ and Cloud Station™ Utilities
GIGABYTE UEFI DualBIOS™ Technology
Support Intel® Small Business Basics
Procesador
Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® H110 Express Chipset
Memoria
2 DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3/DDR3L 1600/1333 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules
(Please refer "Memory Support List" for more information.)
Gráficos Integrados
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 1024 MB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Puertos de Expansión
1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Interfaz de Almacenamiento
Chipset:
4 x SATA 6Gb/s connectors
USB
Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Conectores Internos de E/S
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper
Conectores del Panel Trasero
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x parallel port
1 x serial port
1 x D-Sub port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Controlador de E/S
iTE® I/O Controller Chip
Monitorización H/W
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Únicas
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install
Software Incluido
Norton® Internet Security (OEM version)
cFosSpeed
Sistema Operativo
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Diseño
Micro ATX Form Factor; 22.6cm x 17.4cm

Nuevo en caja , Manuales y Drivers
Ultimas piezas , hasta agotar Stock

TENEMOS STOCK PROPIO , ENTREGA INMEDIATA

Compra tu Motherboard Gigabyte H110M-DS2-DDR3 Nuevo a precio de Remate
Ultimas piezas
Enviamos a Todo Mexico con Mercadoenvios FedEx y DHL
Somos Mercadolíderes Platinum, gracias por tu confianza
La Satisfacción en tu compra es nuestro compromiso.
