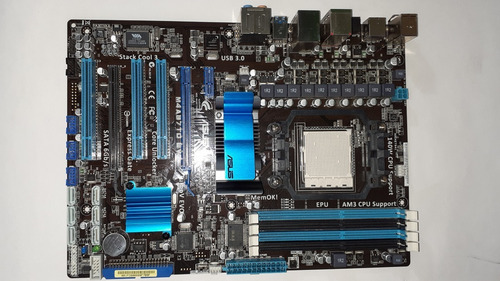

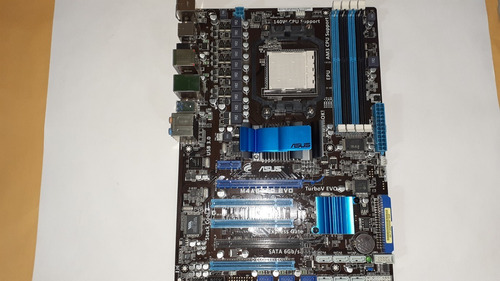

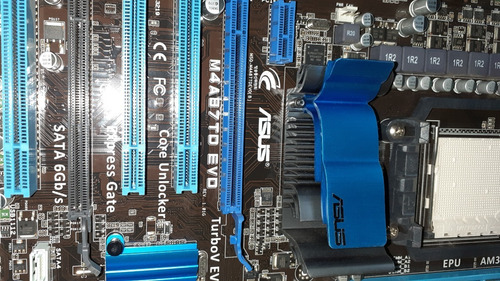

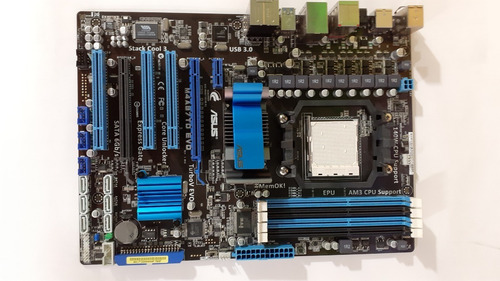

Tarjeta Madre Asus M4a87td Evo Socket Am3 Para Phenom. (Usado)

Descripción

CPU
Procesadores AMD Socket AM3 ;Phenom™ II/Athlon™ II/Sempron™ 100 Series Support 45nm CPU
AMD Cool 'n' Quiet™ 2.0 Technology (by CPU type)
Support CPU up to 140W
for the AMD CPU support list
Chipset
AMD 790FX/SB750
Bus de sistema
Hasta 5200 MT/s ; HyperTransport™ 3.0 interface
Memoria
4 x DIMM Máx. 16 GB, DDR3 2000*/1600/1333/1066 ECC,Non-ECC,Un-buffered Memoria
Dual Channel arquitectura de memoria
*DDR3 Memory Ultra Low Voltage support
**Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit WindowsWindows® OS when you want to install 4GB or more memory on the motherboard.
***Due to CPU spec., AMD 100 and 200 series CPUs support up to DDR3 1066Mhz. With ASUS design, this motherboard can support up to DDR3 1333MHz
****Refer user manual for Memory QVL (Qualify Vendor List)
Ranuras de Expansión
2 x PCIe 2.0 (*blue@ x16 mode, black@ x4 mode)
1 3 x PCI
Almacenamiento
Southbridge
6 xSATA 3.0 Gb/s puertos Soporta RAID 0,1,5,10
JMicron® JMB361 PATA and SATA controller
1 xUltraDMA 133/100 for up to 2 PATA devices
1 xExternal SATA 3Gb/s port (SATA On-the-Go)
LAN
RTL8111E PCIe Gigabit LAN controller featuring AI NET2
Audio
VT1818 High Definition Audio 8Canales CODEC
- Supports Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Optical S/PDIF Out ports at back I/O
- Supports 192kHz/ 24bit BD Lossless Sound
- ASUS Noise Filter
IEEE 1394
VIA® VT6308P controller supports 2 x 1394a puertos
USB
Característica ASUS AI Lifestyle
ASUS Xtreme Design
ASUS Hybrid Processor -- TurboV EVO
- Turbo Unlocker, TurboV EVO, CPU Level UP, Turbo Key
ASUS Hybrid Switch
- Core Unlocker
ASUS Hybrid OS -- Express Gate
ASUS Power Solutions
- ASUS EPU
ASUS Exclusive Features
- MemOK!
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heat sink solution
- ASUS Fan Xpert
ASUS EZ DIY
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
Funciones de Overclocking
Precision Tweaker 2
- vCore: Voltaje de la CPU ajustable con un incremento de 0.0125V
0.003125V
- vDDNB: Adjustable CPU NB voltage at 0.003125V increment
- vNB: Adjustable North Bridge voltage at 0.00625V increment
- vHT bus: Adjustable HT voltage at 0.00625V increment
- vDRAM Bus: Adjustable DRAM voltage at 0.00625V increment
SFS (Stepless Frequency Selection)
- Ajuste de memoria desde 1066MHz hasta 2000MHz
- PCI Ajuste de Frequencia Express de 100MHz 150MHz desde 1MHz

- CPU CLK tuning from 100MHz up to 600MHz at 1MHz increment Protección de Overclocking
- ASUS C.P.R. (Recuperación de parámetros CPU)

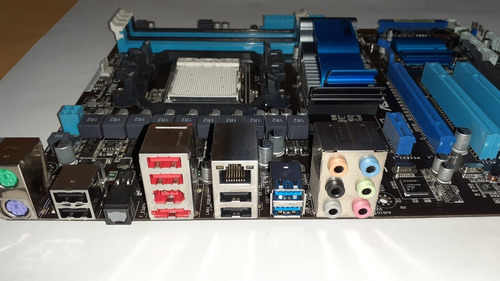

Puertos del Panel Trasero
1 x External SATA
1 x salida S/PDIF (Optical)
1 x IEEE 1394a
1 x puerto LAN(RJ45)
6 x USB 2.0/1.1
8 x Salidas/Entradas para canales de audio
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)
2 x USB 3.0 (Blue)
Conectores E/S Internos
3 x conectores USB supports additional 6 USB 2.0 ports
1 x conector IDE
1 x conector IEEE 1394a
1 x S/PDIF output connector
1 x CPU / 1 x Chassis Fan connectors(4-pin), 1 x PWR Fan connentor(3-pin)
6 x SATA 6Gb/s connectors
1 x COM port connector
1 x System Panel connector
1 x High Definition Front panel audio connector
1 x 24-pin EATX power connector
1 x 4-pin ATX 12V Power connector
1 x Core Unlocker Switch
1 x MemOK! button
BIOS
8 Mb Flash ROM , SPI, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Gestionabilidad
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,WOR by PME
Accesorios
Manual de Usuario
1 x E/S Apantalladas
1 x Cable UltraDMA 133/100/66
2 x Serial ATA 3.0Gb/s cables
2 x Serial ATA 6.0Gb/s cables
1 x 2 in 1 Q-connector
CD de Soporte
Drivers
Express Gate
ASUS PC Probe II
Software anti-virus (versión OEM)
ASUS Update
Formato de Fabricación
ATX Formato de fabricación
12 inch x 8.8 inch 30.5 cm x 22.4 cm )

Garantía del vendedor: 1 meses
